Things We Can Do With Matplotlib Slider in Python

Hello geeks and welcome in today’s article, we will cover the Matplotlib slider. Along with that, we will also look at its syntax for an overall better understanding. Then we will see the application of all the theory part through a couple of examples. But before that, let us try to get a general overview of the function.

A slider can mean different things. For instance, a slider created using JavaScript is used for creating an image slider. The slider that we create using the Matplotlib library helps us by controlling the visual properties of our plot. In the next section, we will see how to create a slider.

Creating a slider in Matplotlib

In this section, we will focus on creating a slider. Let us see the code that will help us create our desired slider. A slider is often used to control the visual property of the plot. So the thing we need to do is create a simple plot.

import numpy as np
from scipy.interpolate import UnivariateSpline
import matplotlib.pyplot as plt

x = np.linspace(0, 10, 20)
y = np.sin(0.5 * x) * np.sin(x * np.random.randn(20))

spline = UnivariateSpline(x, y, s=5)
x_s = np.linspace(0, 10, 100)
y_s = spline(x_s)
fig = plt.figure()

ax = fig.subplots()
p = ax.plot(x, y)
p = ax.plot(x_s, y_s, 'y')

fig = plt.figure()
plt.show()

Matplotlib slider

For this article’s purpose, we will be using the sine plot as our reference. For the changing parameter, we will use a spline curve. To get this plot, we have used both the help of NumPy, Matplotlib Module, and the spline curve. We need the scipy module. Now we the next step is to add a slider to it. Let us how it is done

import numpy as np
from scipy.interpolate import UnivariateSpline
import matplotlib.pyplot as plt
from matplotlib.widgets import Slider
x = np.linspace(0, 10, 20)
y = np.sin(0.5 * x) * np.sin(x * np.random.randn(20))

spline = UnivariateSpline(x, y, s=5)
x_s = np.linspace(0, 10, 100)
y_s = spline(x_s)
fig = plt.figure()
plt.subplots_adjust(bottom=.25)
ax = fig.subplots()
p = ax.plot(x, y)
p = ax.plot(x_s, y_s, 'y')
ax_slide=plt.axes([.25,.1,.65,.03])
s_factor=Slider(ax_slide,"changing value",valmin=0.2,valmax=1.0,valinit=.6,valstep=.2)


fig = plt.figure()
plt.show()
Matplotlib Slider

Above, we have successfully added the slider in our plot. To so, we have made certain additions to our code. First, we have used the subplot adjust function to make the slider space. Then we have defined the slider dimensions. Next, we have defined the slider parameters such as label, minimum and maximum values. Also its initial point and valstep. But the fact our slider is not yet connected to the graph, and any change in it will have no change on the plot.

Let us see how to connect them

import matplotlib
matplotlib.use('Qt5Agg')
import numpy as np
from scipy.interpolate import UnivariateSpline
import matplotlib.pyplot as plt
from matplotlib.widgets import Slider


x = np.linspace(0, 10, 20)
y = np.sin(0.5 * x) * np.sin(x * np.random.randn(20))

spline = UnivariateSpline(x, y, s=5)
x_spline = np.linspace(0, 10, 100)
y_spline = spline(x_spline)

fig = plt.figure()
plt.subplots_adjust(bottom=0.25)
ax = fig.subplots()
p = ax.plot(x, y)
p, = ax.plot(x_spline, y_spline, 'y')

ax_slide = plt.axes([0.25, 0.1, 0.65, 0.03])

s_factor = Slider(ax_slide, 'changing factor',
                  1, 5, valinit=2.5, valstep=0.5)



def update(val):
    current_v = s_factor.val
    spline = UnivariateSpline(x, y, s=current_v)
    p.set_ydata(spline(x_spline))
    fig.canvas.draw()

s_factor.on_changed(update)
plt.show()

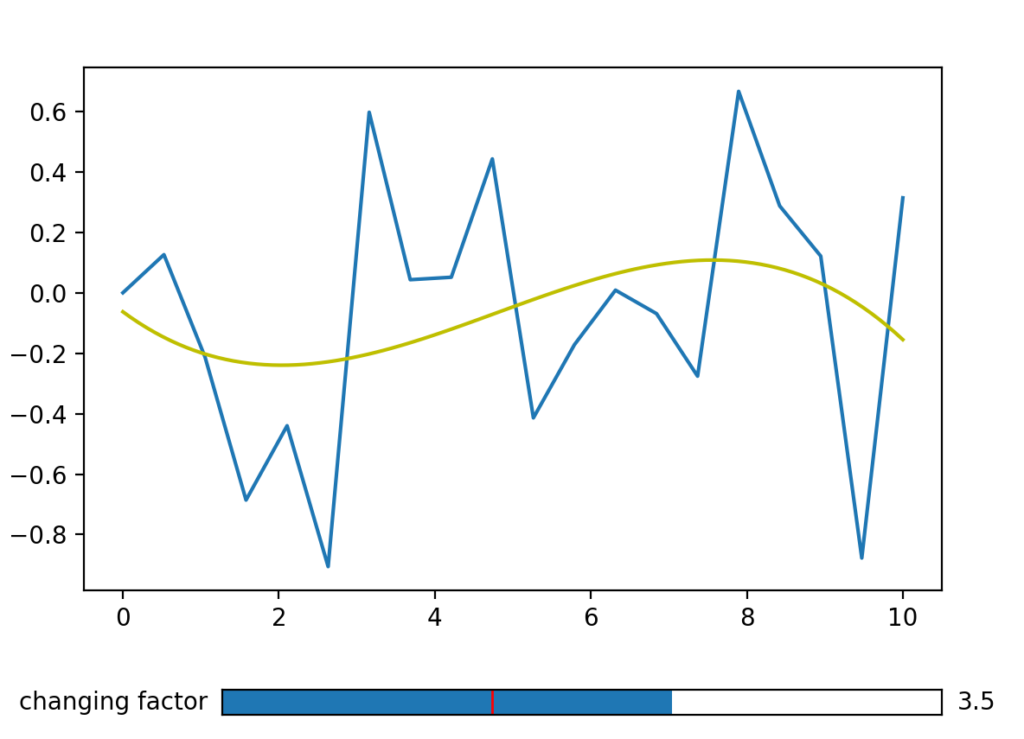

interactive slider

Here we are able to successfully connect the slider to the graph. Also now if make any change in slider it will cause a change in the plot. In order to do so, we have defined a function as it is quite evident from the code.

Change the color of Matplotlib slider

If you wish you can change the colour of your slider. In order to do so, all you need to do is add a colour parameter when defining the slider parameter. From the above code, all we need to do is add the following thing

s_factor = Slider(ax_slide, 'changing factor',
                  1, 5, valinit=2.5, valstep=0.5,color="red")
slider color change

See how we can change our slider’s color similarly if you wish to change the step at which the slider increases or decreases. You can also do so by making a change in the “valstep” parameter. You can see the code below

s_factor = Slider(ax_slide, 'changing factor',
                  1, 5, valinit=2.5, valstep=0.25,color="green")
matplotlib slider step

How to zoom on the plot using the slider

With the help of a slider in matplotlib, we can also zoom in and out of the plot. The code through which we can achieve it is given below

import matplotlib
matplotlib.use('Qt5Agg')
from numpy import pi, sin
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.widgets import Slider, Button, RadioButtons
def signal(amp, freq):
    return amp * sin(2 * pi * freq * t)
axis_color = 'lightgoldenrodyellow'
fig = plt.figure()
ax = fig.add_subplot(111)
fig.subplots_adjust(left=0.25, bottom=0.25)
t = np.arange(-10, 10.0, 0.001)
[line] = ax.plot(t, signal(5, 2), linewidth=2, color='red')
ax.set_xlim([0, 1])
ax.set_ylim([-10, 10])
zoom_slider_ax = fig.add_axes([0.25, 0.1, 0.65, 0.03], facecolor=axis_color)
zoom_slider = Slider(zoom_slider_ax, 'Zoom', -1, 1, valinit=0)
def sliders_on_changed(val, scale_factor=0.25):
    cur_xlim = ax.get_xlim()
    cur_ylim = ax.get_ylim()
    scale = zoom_slider.val*scale_factor
    x_left = 0 + scale
    x_right = 1 - scale
    y_top = 10 - scale*10
    y_bottom = -10 + scale*10
    ax.set_xlim([x_left, x_right])
    ax.set_ylim([y_bottom, y_top])
    fig.canvas.draw_idle()
zoom_slider.on_changed(sliders_on_changed)
reset_button_ax = fig.add_axes([0.8, 0.025, 0.1, 0.04])
reset_button = Button(reset_button_ax, 'Reset', color=axis_color, hovercolor='0.975')
def reset_button_on_clicked(mouse_event):
    zoom_slider.reset()
reset_button.on_clicked(reset_button_on_clicked)
color_radios_ax = fig.add_axes([0.025, 0.5, 0.15, 0.15], facecolor=axis_color)
color_radios = RadioButtons(color_radios_ax, ('red', 'blue', 'green'), active=0)
def color_radios_on_clicked(label):
    line.set_color(label)
    fig.canvas.draw_idle()
color_radios.on_clicked(color_radios_on_clicked)
plt.show()
Matplotlib Plot

This is the original graph that we get as output. Now using the slider we change the overall representation of the plot. Image below shows the change that happens

Matplotlib slider zoom

Matplotlib Slider Not Working Problem Fixed

Matplotlib widget requires external support to display them in the window. More importantly, if used in Pycharm or Jupyter customized python shell, they can remain uninitialized. As this software doesn’t support certain GUI modules, you need to change the base module used for GUI creation.

Suppose you are using Pycharm Ide or jupyter notebook to write your program. Then widgets may not be interactive in nature. To make them interactive, all you need to do is install the “PYQT5” module and add this to your code –

import matplotlib
matplotlib.use('Qt5Agg')

This way our widget becomes interactive. Qt5Agg refers to the PyQT5 module which is famous for its advanced level GUI functions. Before using this module, you need to make sure, you have PyQT5 installed on your computer. If not, then run this command in your terminal – pip install PyQt5

Using this function will make sure that your Matplotlib windows will be created by using the PyQT5 module.

Alternative Solution –

import matplotlib.pyplot as plt
from matplotlib.widgets import Slider, Button, RadioButtons
import matplotlib

matplotlib.use('TkAgg')

Moreover, if using PyQT5 as a GUI interface doesn’t work for you, you need to change the module to a basic Tkinter. As Tkinter is pre-installed in python and doesn’t require and external modules, it can run easily.

Conclusion

In this article, we covered the Matplotlib Slider. We looked at a step by step procedure on how we can execute this in our program. We also looked at the trick, making our slider interactive. In the end, we can conclude that through the slider, we can change the visual representation of our plot.

I hope this article was able to clear all doubts. But in case you have any unsolved queries feel free to write them below in the comment section.
